• Size ​: 15 NB – 50 NB (1/2″ – 2″)

  • Type : 2-Way

  • Pressure Rating : PN16 upto 40 mm (1.5″)
    PN7 for 50 mm (2″)

  • Operating Temp. : upto 180 deg C

  • Process Connection : Screwed End / Flanged End / Tri-Clover (TC)

  • Leakage Class : Tight Shut-OFF

  • Body MoC : SS304 / SS316 / SS 316L

  • Plug MoC : SS304 / SS316 / SS 316L

  • Duty : ON-OFF

  • Pneumatic Pressure : 4-6 Barg

  • Signal : ON/OFF – 220VAC / 24VDC
    ON/OFF – 24VDC

  • Applications : HVAC, Power Plant, Water Treatment, Water Management System, Chemical Plant, Sugar Plant, Cement Plant, Utilities, Paper Plant, Distilleries etc.

  • Make : STOLZEL

Categories: , ,

Description

  • Reliable & Cost Effective

  • Best Quality

  • Light in weight

  • Asthetically designed

  • Tested for more than 10 Million Cycle

  • Comparatively Longer life

  • Large size indicator provides better position indication from a distance

  • Lowest delivery period

Specifications

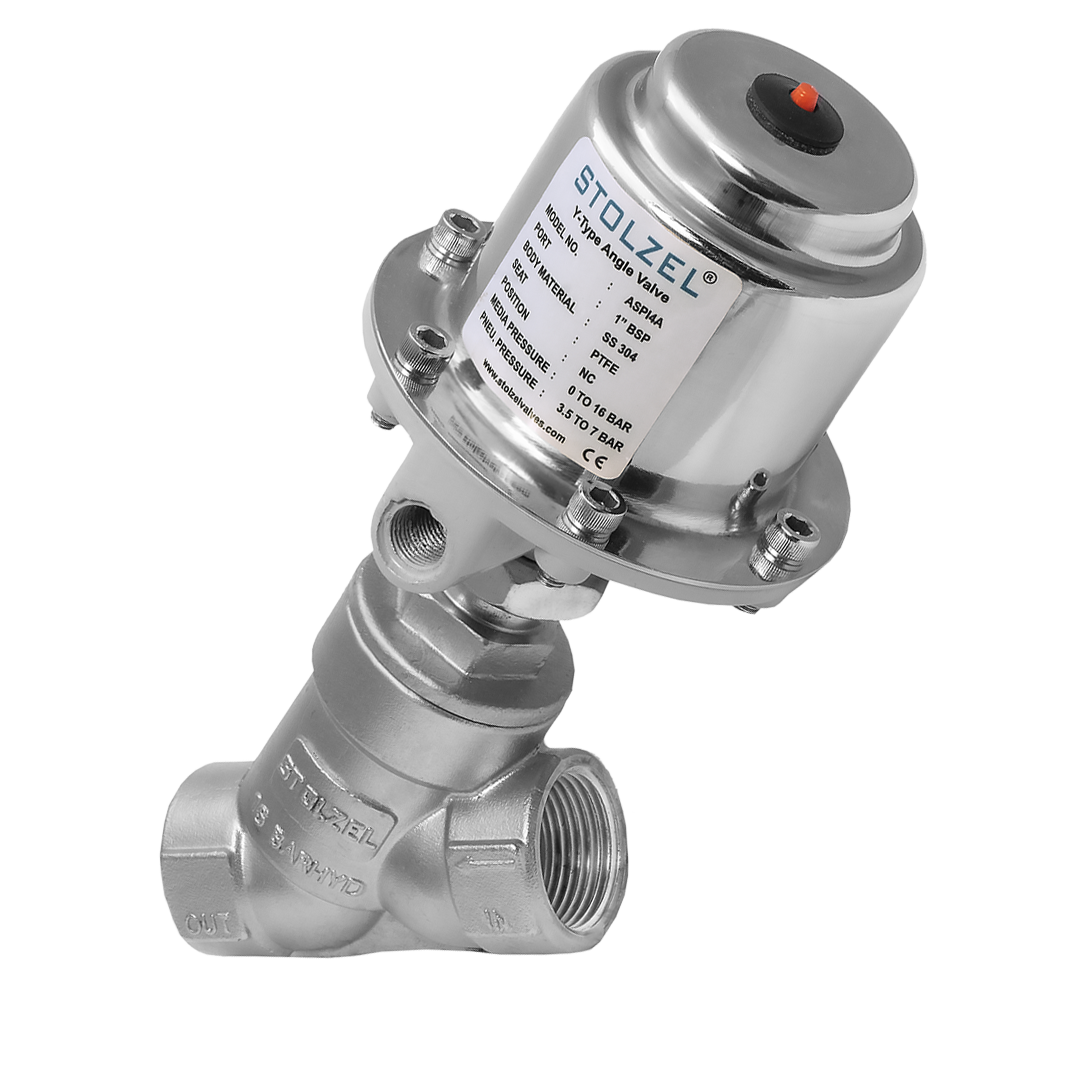

Y-Type Angle Valve

  • Size : 15mm to 50mm (1/2″ to 2″)

  • Type : 2-Way

  • Body : SS304 / SS316 / SS 316L

  • Plug : SS304 / SS316 / SS 316L

  • Seat : PTFE

  • Pressure Rating : PN16 upto 40 mm (1.5″), PN7 for 50 mm (2″)

  • Temperature : upto 180 deg C

  • Connection : Screwed End / Flanged End / Tri-Clover (TC)

  • Leakage Class : Tight Shut-OFF

Pneumatic Actuator

  • Body : SS304

  • Pneumatic Pressure : 4 – 6 Barg

  • Air Connection : 1/4″ BSP

  • Position Indicator : Mechanical Position indicator

  • Environment Temp. : -30° C to +60° C
