• Size ​: 15 NB – 300 NB (1/2″ – 12″)

  • Type : 2-Way / 3-Way / 4-Way

  • Pressure Rating : Class 150 / Class 300

  • Operating Temp. : upto 350 deg C

  • Process Connection : Screwed End / Flanged End / Socked Weld

  • Leakage Class : Class IV / V /VI

  • MoC : WCB / SS304 / SS316 / SS 316L

  • Duty : Modulating / ON-OFF

  • Electrical Supply : 220 VAC / 24 VDC

  • Signal : ON/OFF – 220VAC / 24VDC
    Modulating – 4~20 mA / 0-10 VDC

  • Accesories : Manual Override, Position Feedback Card

  • Applications : HVAC, Power Plant, Water Treatment, Water Management System, Chemical Plant, Sugar Plant, Cement Plant, Utilities, Paper Plant, Distilleries etc.

Categories: , , ,

Description

  • Reliable & Cost Effective

  • Best Quality

  • Light in weight

  • Asthetically designed

  • Mounting dimensions follows to ISO5211 standard

  • Comparatively Longer life

  • Large size indicator provides better position indication from a distance

  • Aux. Contacts for potential free feedback

  • Self-Locking due to worm-worm gear mechanism

  • Space Heater

  • Lowest delivery period

Specifications

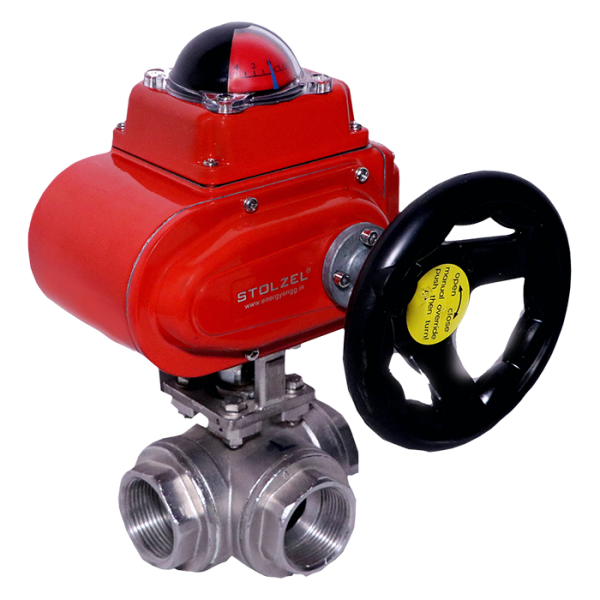

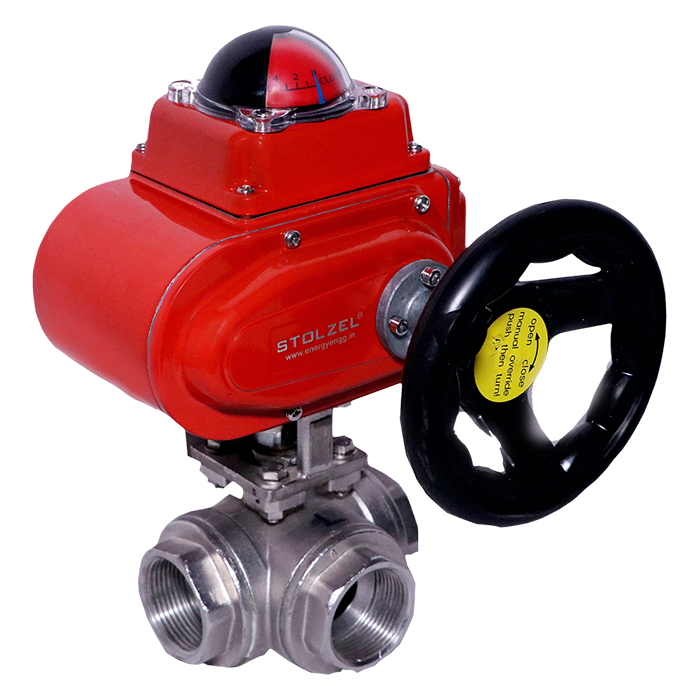

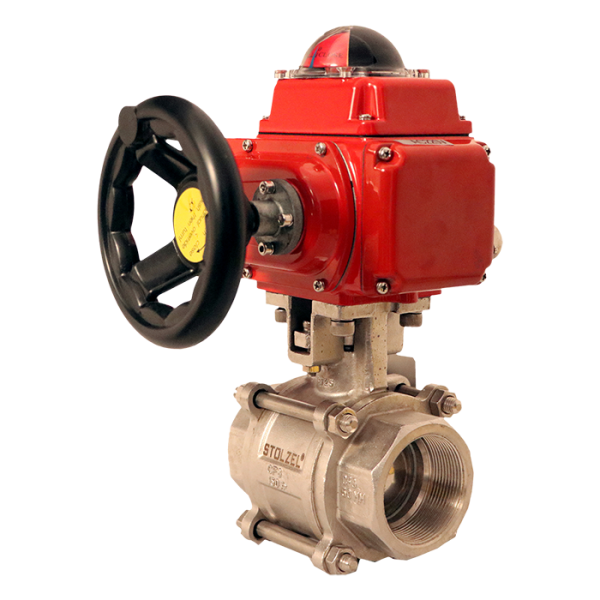

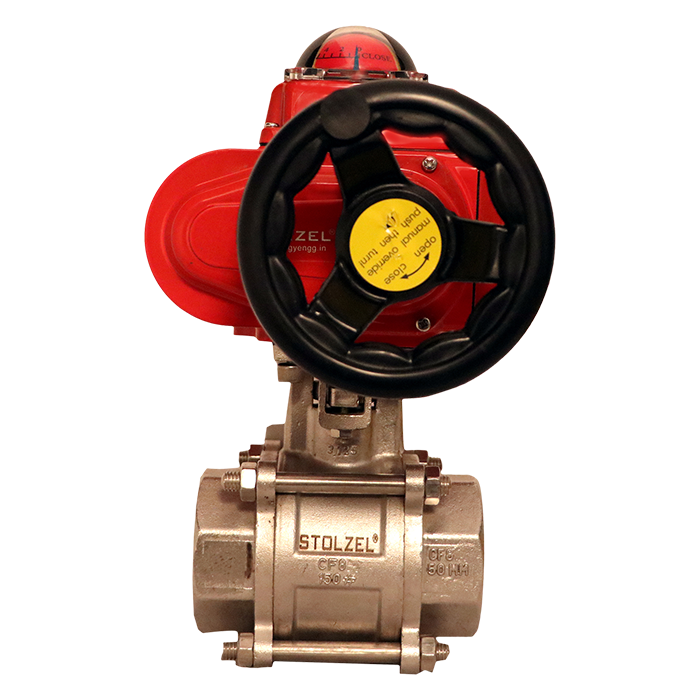

Ball Valve

  • Size : 2 Way – 15mm to 300MM (1/2″ to 12″)
    3 Way – 15mm to 200MM (1/2″ to 8″)
    4 Way – 15mm to 150MM (1/2″ to 6″)

  • Type : 2-Way / 3-Way / 4-Way

  • Body : WCB / SS304 / SS316 / SS 316L

  • Ball : SS304 / SS316 / SS 316L

  • Seat : PTFE / Metal – Metal

  • Pressure Rating : Class 150 / Class 300

  • Temperature : upto 350 Deg C

  • Connection : Screwed End / Flanged End / Socked Weld

  • Leakage Class : Class IV / V / VI

Electrical Actuator

  • Enclosure : Aluminium alloy

  • Torque : 30Nm to 50000Nm

  • Electrical Supply : 220 VAC, 24 VDC

  • Control Signal :ON/OFF – 220VAC / 24VDC
    Modulating – 4~20 mA / 0-10 VDC

  • Motor : Squirrel Cage Induction Motor (AC)
    Brushless Motor (DC)

  • Duty Cycle : S2 (15-30 min)

  • Limit Switch : 1 x SPDT (220VAC, 10A) for each Open / Close

  • Manual Override : Wrench Type / Handwheel

  • Space Heater : 7-10W (220VAC) to remove moisture in enclosure

  • Cable Entry : 2 X M18

  • Operating Conditions : -20 to 70 deg C, 80-90% Humidity

  • Mounting : ISO5211

  • Position Indicator : Mechanical Position indicator

  • Rotation Angle : 0 to 90° (Rotary Type)
