• Size ​: 15 NB – 300 NB (1/2″ – 12″)

  • Type : 2-Way / 3-Way

  • Pressure Rating : Class 150 / 300 / 800 / 1500 / 2500

  • Operating Temp. : upto 400 deg C

  • Process Connection : Flanged End / Socked Weld

  • Leakage Class : Class IV / V / VIC

  • MoC : WCB / SS304 / SS316 / SS 316L

  • Duty : Modulating / ON-OFF

  • Pneumatic Pressure : 4-6 Barg

  • Signal : ON/OFF – 220VAC / 24VDC
    Modulating – 4~20 mA / 0-10 VDC

  • Accesories : Solenoid Valve, Limit Switch, Positioner Manual Override

  • Applications : Power Plant, Rice Shellers, Edible Oil Plants, Chemical Plants, Sugar Plant, Cement Plant, Paper Plant, Distilleries, Utilities etc.

Categories: , ,

Description

  • Reliable & Cost Effective

  • Best Quality

  • Light in weight

  • Asthetically designed

  • Available for various MoC

  • Comparatively Longer life

  • Can be designed upto 400 degC

  • SHORTEST delivery

Specifications

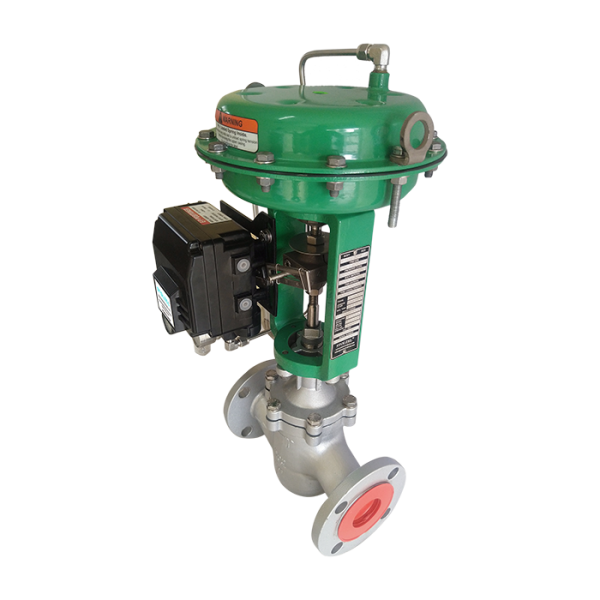

Globe Valve

  • Size : 15 NB – 300 NB (1/2″ – 12″)

  • Type : 2-Way / 3-Way

  • Body : WCB / SS304 / SS316 / SS 316L

  • Plug : SS304 / SS316 / SS 316L

  • Seat : PTFE / Metal – Metal

  • Pressure Rating : Class 150 / 300 / 800 / 1500 / 2500

  • Temperature : upto 400 deg C

  • Connection : Flanged End / Socked Weld

  • Leakage Class : Class IV / V / VI

Pneumatic Actuator

  • Type : Diaphragm

  • Spring Set : Single Spring / Multi-Spring

  • Action : Double Acting / Single Acting

  • Air Fail Case : Air Fail to OPEN / Air Fail to CLOSE

  • Body : MS Powder Coated

  • Size : 275 -1920 sq. cm

  • Pneumatic Pressure : 1.5 – 4 Barg

  • Stroke : 25-50 mm

  • Ambient Temperature : -30° C to +60° C

Accessories

Solenoid Valve – ON/OFF Duty

  • Type : Namur 3/2 & 5/2

  • Coil : 220 VAC / 24 VDC

  • Protection : IP65 / Flame Proof

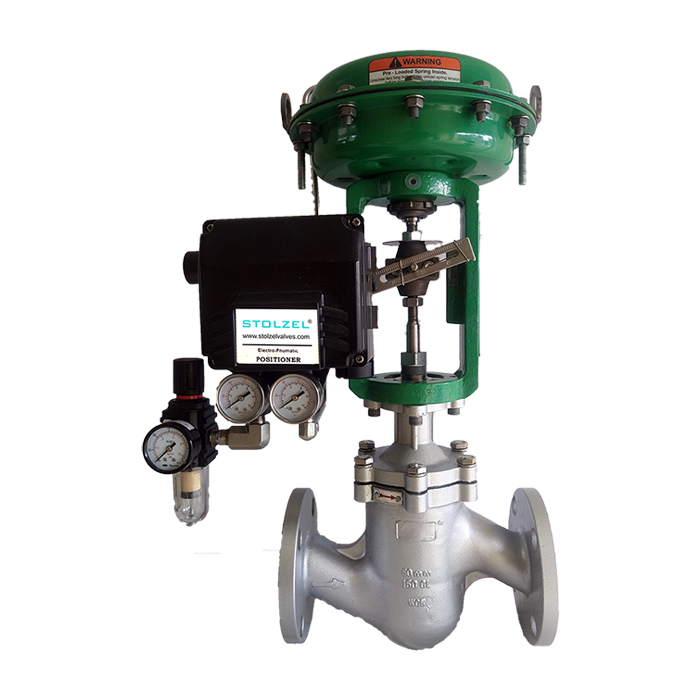

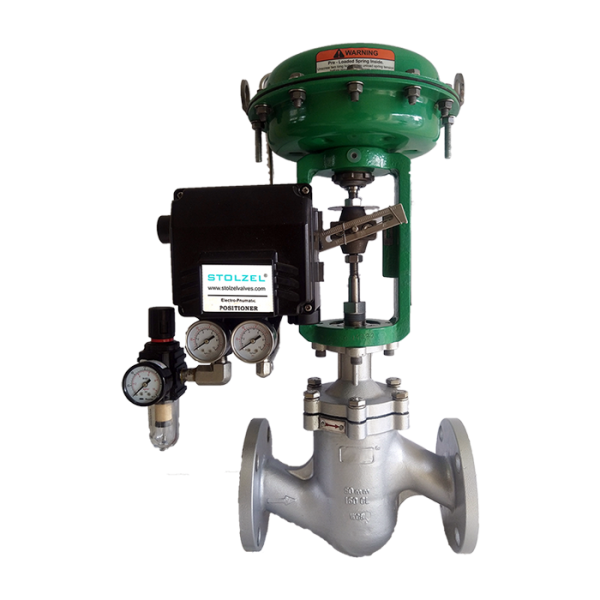

Positioner – Modulating Duty

  • Type : Electro-Pneumatic / Smart

  • Signal : 4~20 mA / 0-10 VDC

  • Feedback : 4~20 mA / 0-10 VDC (Optional)

Manual Override – Manual Operation along with Automatic

  • Type : Mechanical

  • Orientation : Top / Side Mounted

Limit Switch – Position Feedback

  • Type : Mechanical / Proximity Switch

  • Signal : Potential Free in case of Mechanical Switch
    24VDC in case of Proximity Switch

  • Enclosure : Aluminum

  • Protection : IP 67
