• Cylinder Size ​: upto 300 mm

  • Stroke: upto 1000 mm

  • Pneumatic Pressure : 2.5 – 7 Barg

  • Operating Temp. : upto 120 deg C

  • Process Connection : Female Clevise, Wall Bracket Mounting
    Eye Rod Mounting, Fork Mounting
    Front & Rear Trunnion Mounting
    Pivot Mounting
    Front/Rear Flange Mounting

  • MoC : Aluminium

  • Duty : Modulating / ON-OFF

  • Signal : ON/OFF – 220VAC / 24VDC
    Modulating – 4~20 mA / 0-10 VDC

  • Accesories : Solenoid Valve, Limit Switch, Positioner, Manual Override

  • Applications : All kind of Boilers, Dampers, Kiln Sensors in Cement Plants

Categories: , ,

Description

  • Reliable & Cost Effective

  • Best Quality

  • Light in weight

  • Asthetically designed

  • Available for various MoC

  • Comparatively Longer life

  • Can be designed upto 180 degC

  • Shortest delivery

Specifications

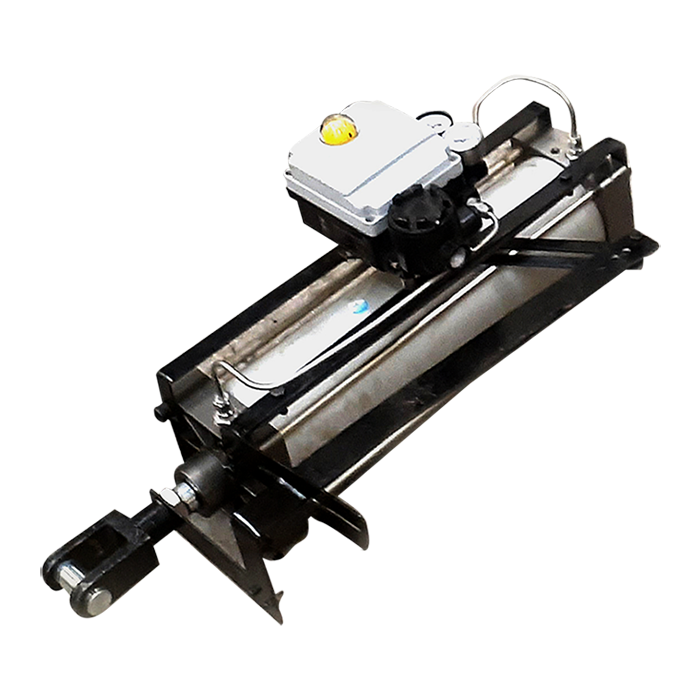

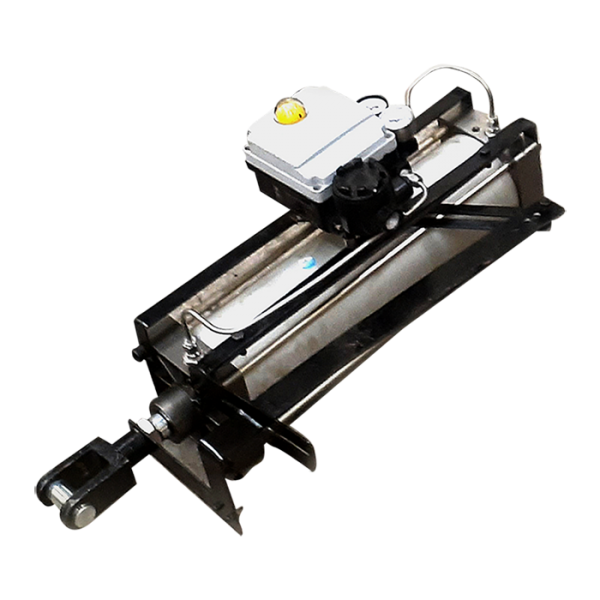

Pneumatic Power Cylinder

  • Cylinder Size : upto 300 mm

  • Stroke : upto 1000 mm

  • Pneumatic Pressure : 2.5 – 7 Barg

  • Operating Temp. : upto 120 deg C

  • Process Connection : Female Clevise, Wall Bracket Mounting
    Eye Rod Mounting, Fork Mounting
    Front & Rear Trunnion Mounting
    Pivot Mounting
    Front/Rear Flange Mounting

  • MoC : Aluminium

  • Duty : Modulating / ON-OFF

  • Signal : ON/OFF – 220VAC / 24VDC
    Modulating – 4~20 mA / 0-10 VDC with / without
    feedback

Accessories

Solenoid Valve – ON/OFF Duty

  • Type : Namur 3/2 & 5/2

  • Coil : 220 VAC / 24 VDC

  • Protection : IP65 / Flame Proof

Positioner – Modulating Duty

  • Type : Electro-Pneumatic / Smart

  • Signal : 4~20 mA / 0-10 VDC

  • Feedback : 4~20 mA / 0-10 VDC (Optional)

Manual Override – Manual Operation along with Automatic

  • Type : Mechanical

Limit Switch – Position Feedback

  • Type : Mechanical / Proximity Switch

  • Signal : Potential Free in case of Mechanical Switch
    24VDC in case of Proximity Switch

  • Enclosure : Aluminum

  • Protection : IP 67
