Butterfly Valve

  • Size ​: 25mm to 600MM (1″ to 24″)

  • Body : CI

  • Disc : SGI / CF8 / CF8M

  • Seat : NBR / EPDM / Customized

  • Pressure : PN10 / PN16

  • Temperature : NBR – upto 90 Deg C / EPDM – upto 120 Deg C

  • Connection : Wafer type

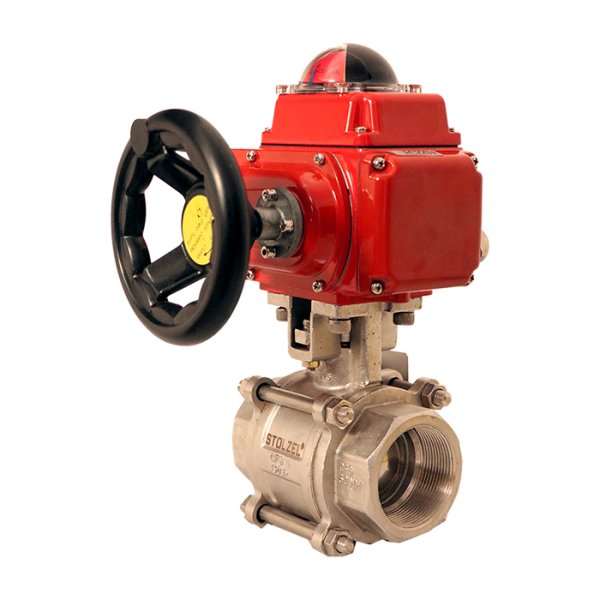

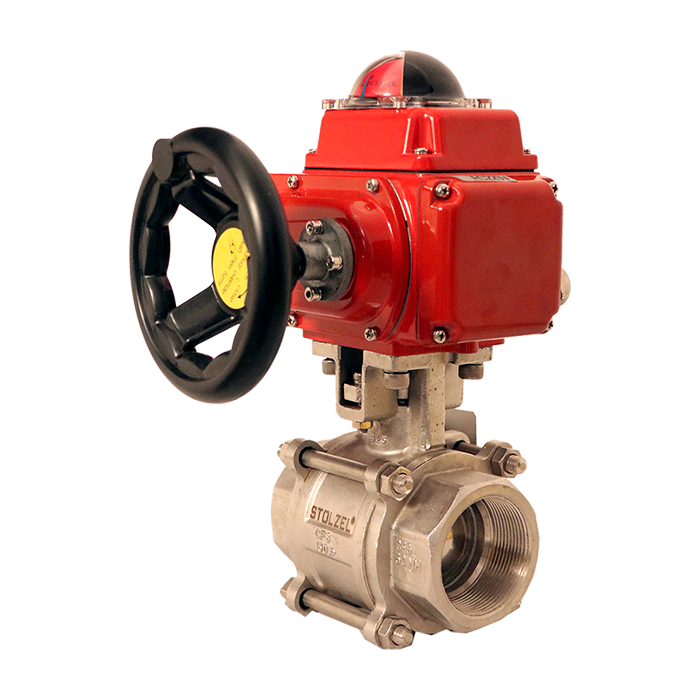

Electrical Actuator

  • Body : Aluminium alloy

  • Torque : 30NM to 4000NM

  • Power Supply : 24V DC / 220V AC 50Hz

  • Control Power Supply : 24V DC / 220V AC 50Hz

  • Limit Switch : 2 X SPDT (220 VAC, 10A) for Valve Open & Close

  • Auxillary Limit Switch : 2 X SPDT (220 VAC, 10A) for feedback Open & Close

  • Rotation Angle : 0 to 90° (Rotary Type)

  • Position Indicator : Dome Type continuous Mechanical Position indicator

  • Manual Override : Clutch type handwheel manual override

  • Self Locking : Self-locking by worm and worm gear

  • Space heater : inbuilt

  • Ambient Temperature : -30° C to +60° C

  • Ambient Humidity : 80% Maximum RH

  • Protection : IP67

  • Mounting : ISO5211

  • Cable entry : 2 x M18

  • Lubrication : EP type moly grease

  • External coating : Dry powder, Epoxy polyester, anti-corrosion

  • Optional function : Modulating control, Over torque protection

Categories: , , , ,

Description

  • Desgin Standard : IS-13095, BS-5155 Insertion between flanges ANSI B16.1 CL-150, PN-16, BS10 Table-D, BS10 Table-E

  • Desgin Standard Paper & Pulp Industry, Waste & effluent Treatment Plants, Water Treatment, Chemical & Sugar Industry, Fire fighting, Drilling Rig, Heating & Air Conditioning, Cooling Water Circulation, Compressed Air, Civil Constructions & numerous other applications.

  • Leakage Class 100% tightness at full differential Pressure.

  • Sizes 25MM to 600MM (1″ to 24″)

  • Disc Material SGI / SS304 / SS316

  • Pressure Rating PN10 / PN16

  • Operation Lever operated / Gear Operated / Actuator Operated

Compact and robust construction, light weight providing high output torque (Max 9000Nm)

Hard anodized aluminum housing inside and outside with external powder coated against severe industrial environment.

Mounting base according to ISO5211 standard.

Self-locking provided by double worm gearing (no brake required).

Large size window and indicator provides better position indication from a distance.

Clutch type handwheel for manual operation.
