Technical Specifications

  • Type: 2-Way, Full Bore, Flanged End

  • Body Material: WCB / CF8 (SS304) / CF8M (SS316) / Cast Iron / PVC / PP

  • Ball Material: SS304 / SS316 / Chrome Plated Steel

  • Seat Material: PTFE / RPTFE / PEEK

  • Size Range: 15mm (½”) to 200mm (8”)

  • Working Pressure: Up to 40 bar

  • Temperature Range: -20°C to +180°C

  • Actuator Type: Double Acting / Single Acting (Spring Return)

  • Mounting Standard: ISO 5211

  • Leakage Class: Bubble Tight (Class VI)

Download Catalogue

Categories: , , ,

Description

Technical Specifications

  • 1. Valve Body

    • Type: 2-Way, Full Bore, Flanged End

    • Body Material: WCB / CF8 (SS304) / CF8M (SS316) / Cast Iron / PVC / PP (as per application)

    • Ball Material: SS304 / SS316 / Chrome Plated Steel

    • Seat Material: PTFE / RPTFE / PEEK (depending on media & temperature)

    • Stem Material: SS304 / SS316

    • End Connection: Flanged to ANSI B16.5 / DIN PN16 / PN40

    • Size Range: 15mm (½”) to 200mm (8”)

    • Working Pressure: Up to 40 bar (depending on model)

    • Temperature Range: -20°C to +180°C (with PTFE seat)

    • Design Standard: ASME B16.34 / ISO 17292

    • Leakage Class: Bubble Tight (Class VI)

  • 2. Pneumatic Actuator

    • Type: Double Acting / Single Acting (Spring Return)

    • Body Material: Hard Anodized Aluminium Alloy

    • Air Supply Pressure: 5–7 bar

    • Rotation: 90° ± 5°

    • Mounting Standard: ISO 5211

    • Operating Temperature: -20°C to +80°C

    • Accessories (Optional):

      • Solenoid Valve (24VDC / 230VAC)

      • Limit Switch Box (mechanical or proximity type)

      • Air Filter Regulator with Lubricator (FRL Unit)

      • Positioner (Electro-Pneumatic or Smart type for modulating control)

      • Manual Override

  • 3. Performance & Features

    • Operation: On/Off or Modulating Control

    • Tight Shut-off: 100% bubble-tight sealing

    • Operation Angle: 90° quarter-turn

    • Cycle Life: Over 1 million cycles (under standard conditions)

    • Corrosion Resistant: Suitable for aggressive media and harsh environments

Applications

  • Chemical & Petrochemical Industries

  • Water & Wastewater Plants

  • Oil & Gas

  • Power Generation

  • Food & Beverage Processing

  • HVAC & Process Automation Systems

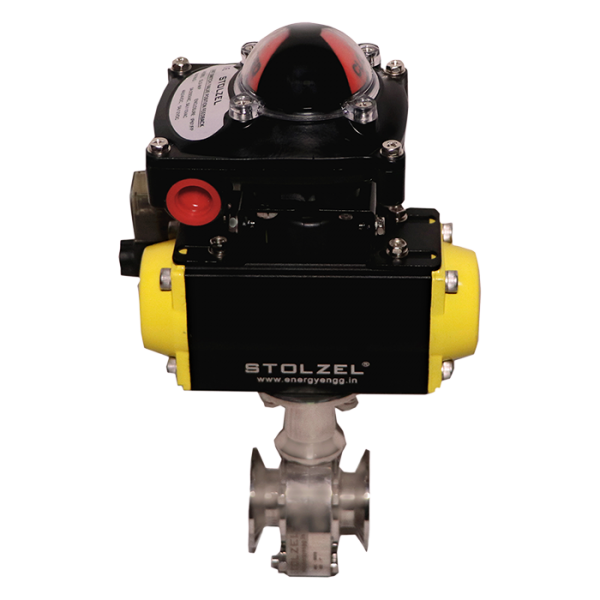

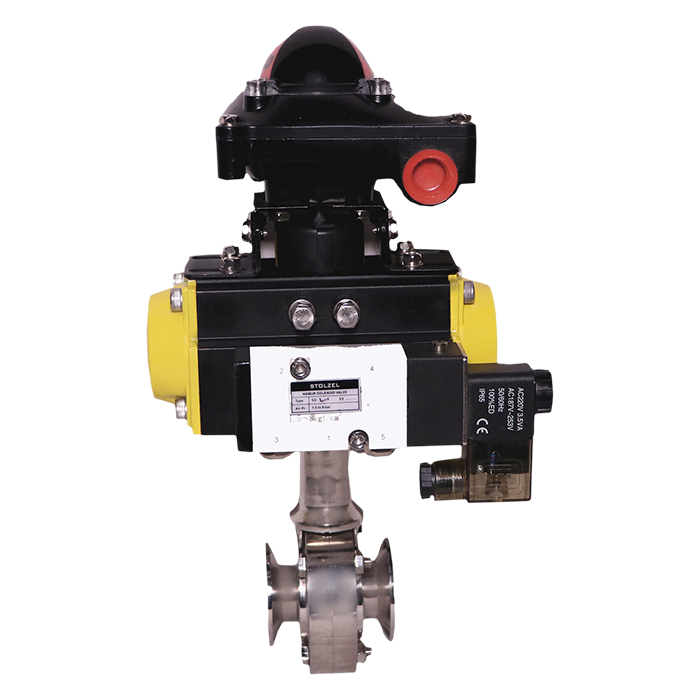

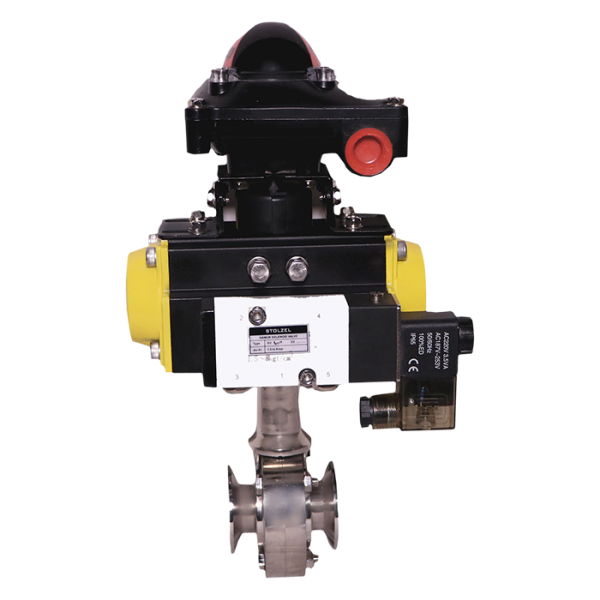

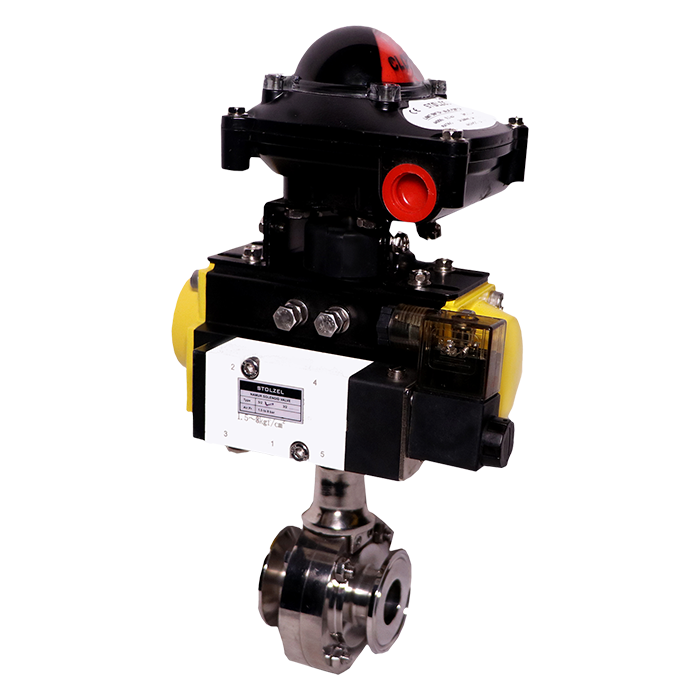

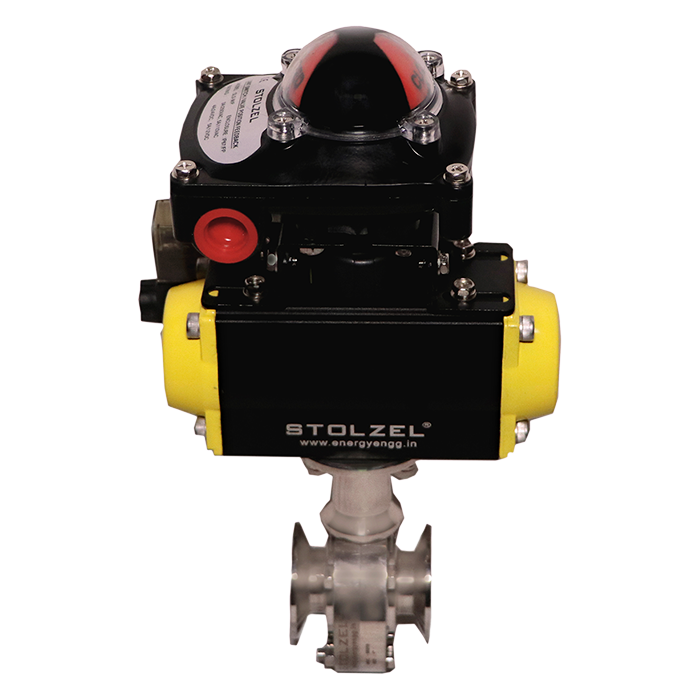

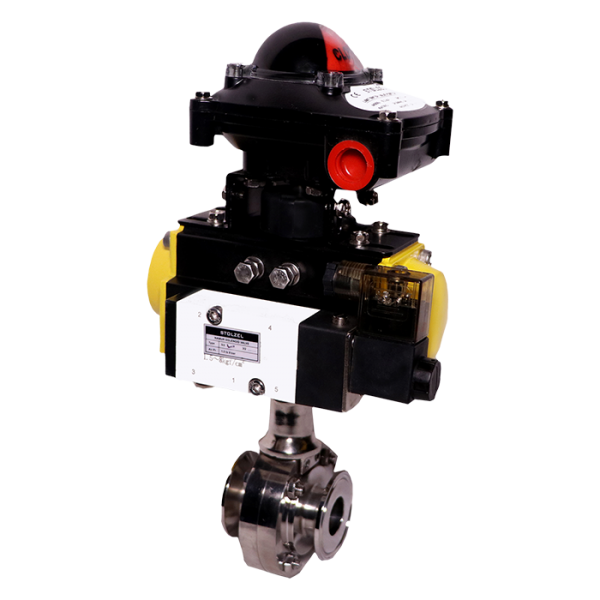

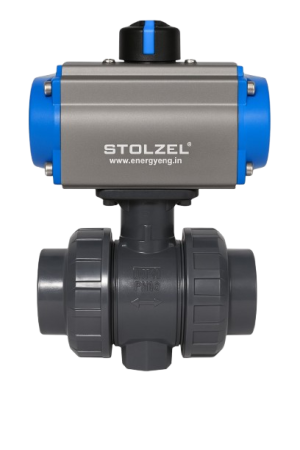

A robust 2-way flanged ball valve operated by a pneumatic actuator, designed for reliable on/off or modulating control of liquids, gases, and steam. Ideal for industrial automation systems requiring precision, durability, and tight shutoff performance.

Specifications

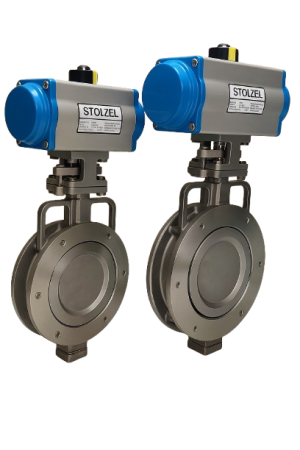

Butterfly Valve

  • Size : 25mm to 300MM (1″ to 12″)

  • Body : CF8 / CF8M / CF3M

  • Disc : CF8 / CF8M / CF3M

  • Seat : Silicon / EPDM

  • Pressure : PN10 (upto 4″)/ PN16 (above 4″)

  • Temperature : upto 120 Deg C

  • Connection : TC End

  • Design Standard : IS-13095

  • Guiding Flange Hole : Follows to BS10 Table-D, BS10 Table-E

Pneumatic Actuator

  • Body : Aluminium alloy

  • Torque : 10Nm to 9000Nm

  • Pneumatic Pressure : 4 – 6 Barg

  • Mounting : ISO5211

  • Position Indicator : Mechanical Position indicator

  • Rotation Angle : 0 to 90° (Rotary Type)

  • Rotation Angle : Mechanical Position indicator

  • Stroke Adjustment : +/- 5% of 90 deg

  • Ambient Temperature : -30° C to +60° C

Accessories

Solenoid Valve – ON/OFF Duty

  • Type : Namur 3/2 & 5/2

  • Coil : 220 VAC / 24 VDC

  • Protection : IP65 / Flame Proof

Positioner – Modulating Duty

  • Type : Electro-Pneumatic / Smart

  • Signal : 4~20 mA / 0-10 VDC

  • Feedback : 4~20 mA / 0-10 VDC (Optional)

Manual Override – Manual Operation along with Automatic

  • Type : Mechanical

  • Lever : Available for De-clutching the Actuator control

Limit Switch – Position Feedback

  • Type : Mechanical / Proximity Switch

  • Signal : Potential Free in case of Mechanical Switch
    24VDC in case of Proximity Switch

  • Enclosure : Aluminum

  • Protection : IP 67
