Key Features

  • Body Material: UPVC (Unplasticized Polyvinyl Chloride)

  • Ball & Stem: PVC / SS304 / SS316 (as per requirement)

  • Seat Material: PTFE

  • Actuation: Double Acting / Single Acting (Spring Return) Pneumatic Actuator

  • Connection Type: Socket / Threaded (BSP / NPT) / Flanged End

  • Operation: On/Off or Modulating type

  • Size Range: 15mm (½”) to 110mm (4”)

  • Working Pressure: Up to 10 bar (PN10)

  • Temperature Range: 0°C to +60°C

  • Air Supply Pressure: 5–7 bar

  • Mounting Standard: ISO 5211

  • Optional Accessories: Solenoid Valve, Limit Switch Box, FRL Unit, Positioner (for modulating control)

Applications

  • Chemical processing

  • Water treatment plants

  • Swimming pool systems

  • Irrigation lines

  • Food and beverage industries

  • Acid and alkali handling

Download Catalogue

Categories: , , ,

Description

Key Features

  • Body Material: UPVC (Unplasticized Polyvinyl Chloride)

  • Ball & Stem: PVC / SS304 / SS316 (as per requirement)

  • Seat Material: PTFE

  • Actuation: Double Acting / Single Acting (Spring Return) Pneumatic Actuator

  • Connection Type: Socket / Threaded (BSP / NPT) / Flanged End

  • Operation: On/Off or Modulating type

  • Size Range: 15mm (½”) to 110mm (4”)

  • Working Pressure: Up to 10 bar (PN10)

  • Temperature Range: 0°C to +60°C

  • Air Supply Pressure: 5–7 bar

  • Mounting Standard: ISO 5211

  • Optional Accessories: Solenoid Valve, Limit Switch Box, FRL Unit, Positioner (for modulating control)

Applications

  • Chemical processing

  • Water treatment plants

  • Swimming pool systems

  • Irrigation lines

  • Food and beverage industries

  • Acid and alkali handling

A two-way UPVC (Unplasticized Polyvinyl Chloride) ball valve integrated with a pneumatic actuator for
automatic on/off control. Ideal for applications requiring corrosion resistance and reliable operation in
chemical, water treatment, and general industrial systems.

Specifications

Ball Valve

  • Size : 2 Way – 15mm to 300MM (1/2″ to 12″)
    3 Way – 15mm to 200MM (1/2″ to 8″)

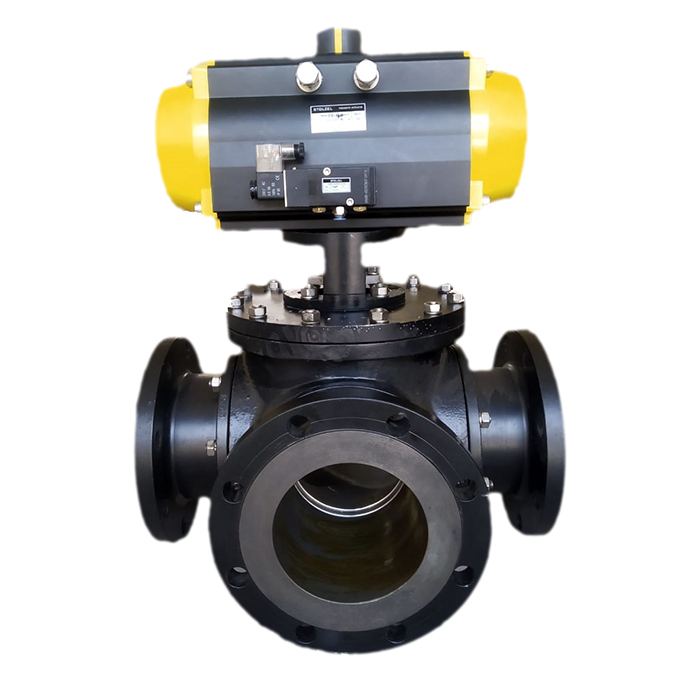

    4 Way – 15mm to 150MM (1/2″ to 6″)

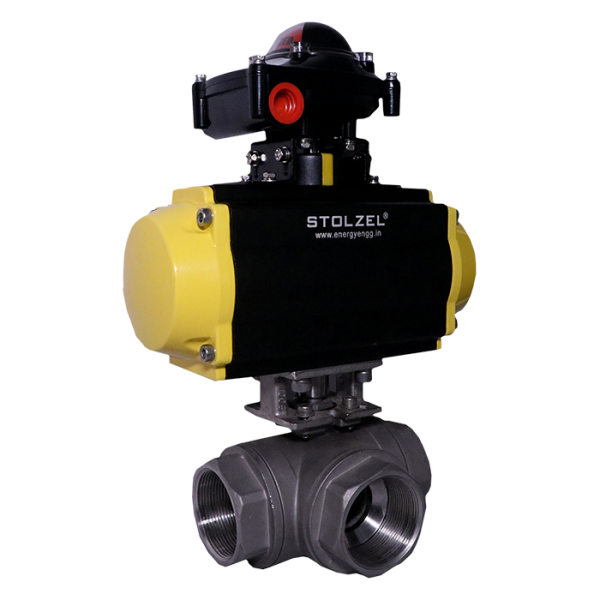

  • Type : 2-Way / 3-Way / 4-Way

  • Body : WCB / SS304 / SS316 / SS 316L

  • Ball : SS304 / SS316 / SS 316L

  • Seat : PTFE / Metal – Metal

  • Pressure Rating : Class 150 / Class 300

  • Temperature : upto 350 Deg C

  • Connection : Screwed End / Flanged End / Socked Weld

  • Leakage Class : Class IV / V / VI

Pneumatic Actuator

  • Body : Aluminium alloy

  • Torque : 10Nm to 9000Nm

  • Pneumatic Pressure : 4 – 6 Barg

  • Mounting : ISO5211

  • Position Indicator : Mechanical Position indicator

  • Rotation Angle : 0 to 90° (Rotary Type)

  • Rotation Angle : Mechanical Position indicator

  • Stroke Adjustment : +/- 5% of 90 deg

  • Ambient Temperature : -30° C to +60° C

Accessories

Solenoid Valve – ON/OFF Duty

  • Type : Namur 3/2 & 5/2

  • Coil : 220 VAC / 24 VDC

  • Protection : IP65 / Flame Proof

Positioner – Modulating Duty

  • Type : Electro-Pneumatic / Smart

  • Signal : 4~20 mA / 0-10 VDC

  • Feedback : 4~20 mA / 0-10 VDC (Optional)

Manual Override – Manual Operation along with Automatic

  • Type : Mechanical

  • Lever : Available for De-clutching the Actuator control

Limit Switch – Position Feedback

  • Type : Mechanical / Proximity Switch

  • Signal : Potential Free in case of Mechanical Switch
    24VDC in case of Proximity Switch

  • Enclosure : Aluminum

  • Protection : IP 67
