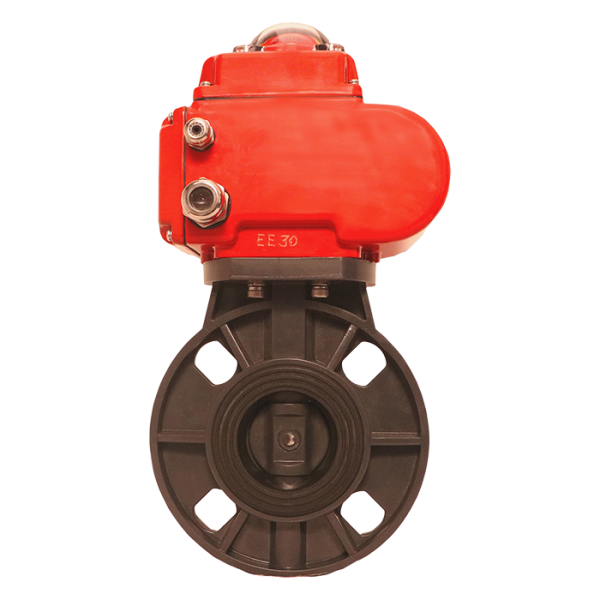

• Type: Wafer Type Butterfly Valve

  • Operation: Electrically Actuated (On/Off or Modulating Type)

  • Design Standard: ISO 5211 / ISO 5752 / BS EN 593

Download Catalogue

Categories: , , ,

Description

  • Valve Construction

  • Body: UPVC (Unplasticized Polyvinyl Chloride)

  • Disc: UPVC / CPVC / PVDF / PP (as per media compatibility)

  • Seat: EPDM / NBR / Viton

  • Shaft: SS 304 / SS 316

  • Bushing: PTFE / Bronze

  • O-Rings & Gaskets: EPDM / Viton

  • Fasteners: SS 304

  • Technical Parameters

  • Size Range: 50 mm to 300 mm (2” to 12”)

  • End Connection: Wafer Type (fits between flanges – ANSI, DIN, JIS standards)

  • Pressure Rating: PN10 / PN16

  • Temperature Range: 0°C to +60°C (depends on seat material)

  • Operation Type: Quarter Turn (90°)

  • Leakage: Bubble Tight Shut-off

  • Face-to-Face Dimension: As per ISO 5752

  • Flow Characteristic: Approx. Equal Percentage

  • Electric Actuator Specifications

  • Type: Quarter Turn Electric Actuator

  • Power Supply: 230 VAC / 110 VAC / 24 VDC

  • Enclosure Protection: IP67 Weatherproof (Optional: IP68 / Flameproof Exd IIB T4)

  • Duty Cycle: 75% (Standard), 100% Optional

  • Operation Time: 15–30 seconds (depends on valve size)

  • Limit Switches: 2 Nos. (Open & Close)

  • Position Indicator: Visual indicator provided

  • Manual Override: Handwheel provided

  • Control Options: On/Off / Modulating (4–20 mA input/output) / Failsafe (spring return or battery backup)

  • Applications

  • Water Supply & Irrigation Systems

  • Wastewater Treatment Plants

  • Chemical Processing (non-corrosive media)

  • Swimming Pools & Aquaculture

  • Cooling Water Systems

  • General Industrial Applications

Specifications

Butterfly Valve

  • Size : 40mm to 300MM (1″ to 12″)

  • Body : UPVC / CPVC

  • Disc : UPVC / CPVC

  • Seat : NBR / EPDM

  • Pressure : PN7

  • Temperature : NBR – upto 90 Deg C / EPDM – upto 120 Deg C

  • Connection : Wafer type

  • Design Standard : IS-13095

  • Guiding Flange Hole : Follows to BS10 Table-D, BS10 Table-E

Electrical Actuator

  • Enclosure : Aluminium alloy

  • Torque : 30Nm to 50000Nm

  • Electrical Supply : 220 VAC, 24 VDC

  • Control Signal : ON/OFF – 220VAC / 24VDC
    Modulating – 4~20 mA / 0-10 VDC

  • Motor : Squirrel Cage Induction Motor (AC)
    Brushless Motor (DC)

  • Duty Cycle : S2 (15-30 min)

  • Limit Switch : 1 x SPDT (220VAC, 10A) for each Open / Close

  • Manual Override : Wrench Type / Handwheel

  • Space Heater : 7-10W (220VAC) to remove moisture in enclosure

  • Cable Entry : 2 X M18

  • Operating Conditions : -20 to 70 deg C, 80-90% Humidity

  • Mounting : ISO5211

  • Position Indicator : Mechanical Position indicator

  • Rotation Angle : 0 to 90° (Rotary Type)
