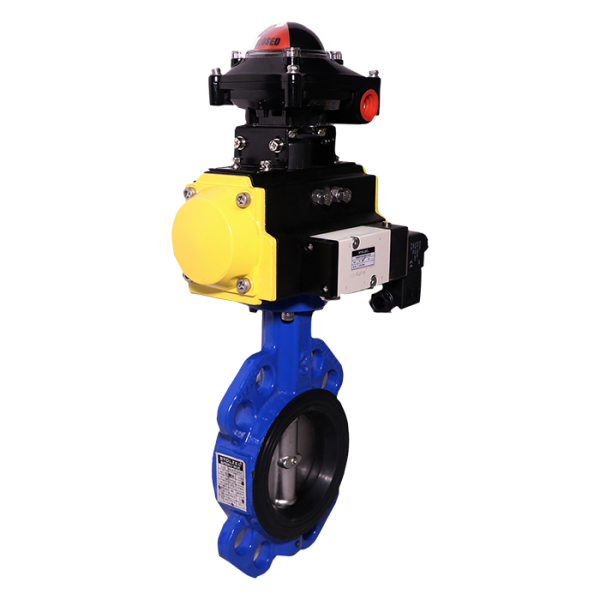

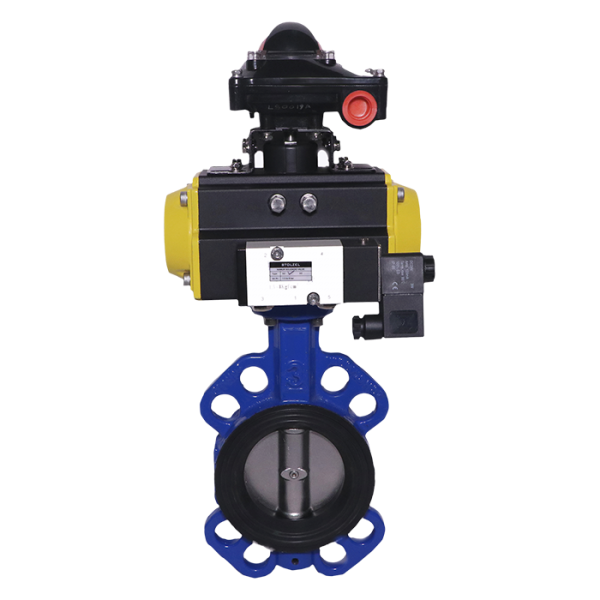

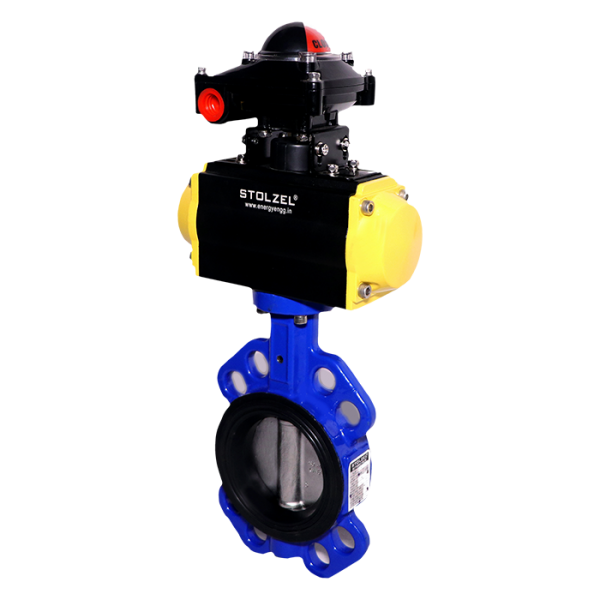

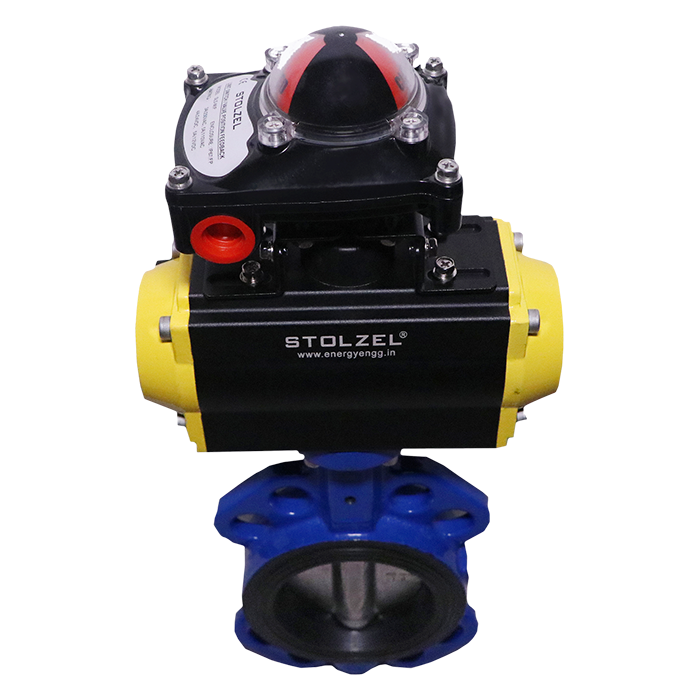

• Type: Wafer Type Butterfly Valve – Electrically Actuated (On/Off or Modulating Type)

  • Design Standard: ISO 5211 / API 609 / BS EN 593 ensures compatibility and reliability in industrial automation.

  • Construction: Body made of CI / SG Iron / WCB / CF8 (SS304) / CF8M (SS316) with disc options in SS304 / SS316 / DI with Nylon Coating / Aluminium Bronze, offering excellent corrosion resistance and durability.

  • Seat Options: EPDM / NBR / Viton / PTFE suitable for wide temperature ranges and chemical compatibility.

Download Catalogue

Categories: , , ,

Description

  • Valve Construction

  • Body: CI / SG Iron / WCB / CF8 (SS304) / CF8M (SS316)

  • Disc: SS304 / SS316 / DI with Nylon Coating / Aluminium Bronze

  • Seat: EPDM / NBR / Viton / PTFE

  • Shaft: SS410 / SS304 / SS316

  • Bushings: PTFE / Bronze

  • Fasteners: SS304 / SS316

  • Technical Parameters

  • Size Range: 50 mm to 600 mm (2” to 24”)

  • End Connection: Wafer Type – Fits between flanges (ANSI 150 / PN10 / PN16 / JIS 10K)

  • Pressure Rating: PN10 / PN16 / Class 150

  • Temperature Range: -10°C to +180°C (depends on seat material)

  • Operation Type: Quarter Turn (90°)

  • Leakage Class: Class VI (Bubble Tight)

  • Face-to-Face Dimension: As per ISO 5752 / API 609

  • Mounting Pad: ISO 5211 Direct Mounting

  • Electric Actuator Specifications

  • Type: Quarter Turn Electric Actuator

  • Power Supply: 230 VAC / 110 VAC / 24 VDC

  • Enclosure Protection: IP67 Weatherproof (Optional: IP68 / Flameproof Exd IIB T4)

  • Duty Cycle: 75% (Standard), 100% Optional

  • Operation Time: 15–60 seconds (depends on valve size & torque)

  • Limit Switches: 2 Nos. (Open & Close)

  • Position Indicator: Visual Indicator Provided

  • Manual Override: Handwheel Provided

  • Control Options: On/Off / Modulating (4–20 mA) / Failsafe (spring return or battery backup)

  • Applications

  • Water & Wastewater Treatment

  • Chemical & Process Industries

  • HVAC & Cooling Systems

  • Food & Beverage Industries

  • Power Plants

  • General Industrial Automation

Specifications

Butterfly Valve

  • Size : 40mm to 600MM (1.5″ to 24″)

  • Body : CI

  • Disc : SGI / CF8 / CF8M

  • Seat : NBR / EPDM / Viton

  • Pressure : PN10 / PN16

  • Temperature : NBR – upto 90 Deg C / EPDM – upto 120 Deg C

  • Connection : Wafer type

  • Design Standard : IS-13095

  • Guiding Flange Hole : Follows to BS10 Table-D, BS10 Table-E

Electrical Actuator

  • Enclosure : Aluminium alloy

  • Torque : 30Nm to 50000Nm

  • Electrical Supply : 220 VAC, 24 VDC

  • Control Signal : ON/OFF – 220VAC / 24VDC
    Modulating – 4~20 mA / 0-10 VDC

  • Motor : Squirrel Cage Induction Motor (AC)
    Brushless Motor (DC)

  • Duty Cycle : S2 (15-30 min)

  • Limit Switch : 1 x SPDT (220VAC, 10A) for each Open / Close

  • Manual Override : Wrench Type / Handwheel

  • Space Heater : 7-10W (220VAC) to remove moisture in enclosure

  • Cable Entry : 2 X M18

  • Operating Conditions : -20 to 70 deg C, 80-90% Humidity

  • Mounting : ISO5211

  • Position Indicator : Mechanical Position indicator

  • Rotation Angle : 0 to 90° (Rotary Type)
