Technical Specifications

1. Valve Body

  • Type: Wafer / Lug / Flanged End

  • Body Material: CI / DI / WCB / SS304 / SS316 / PP / PVDF (as per application)

  • Disc Material: SS304 / SS316 / DI Epoxy Coated / Nylon Coated / PFA / PVDF

  • Seat Material: EPDM / NBR / Viton / PTFE

  • Shaft Material: SS304 / SS316

  • Size Range: 40mm (1½”) to 600mm (24”)

  • Working Pressure: PN10 / PN16

  • Temperature Range: -20°C to +180°C (depending on seat material)

Download Catalogue

Categories: , , ,

Description

Technical Specifications

1. Valve Body

  • Type: Wafer / Lug / Flanged End

  • Body Material: CI / DI / WCB / SS304 / SS316 / PP / PVDF (as per application)

  • Disc Material: SS304 / SS316 / DI Epoxy Coated / Nylon Coated / PFA / PVDF

  • Seat Material: EPDM / NBR / Viton / PTFE

  • Shaft Material: SS304 / SS316

  • Size Range: 40mm (1½”) to 600mm (24”)

  • Working Pressure: PN10 / PN16

  • Temperature Range: -20°C to +180°C (depending on seat material)

2. Pneumatic Actuator

  • Type: Double Acting / Single Acting (Spring Return)

  • Body Material: Extruded Aluminium, Hard Anodized

  • Air Supply Pressure: 5–7 bar

  • Working Medium: Clean, dry air (filtered & lubricated)

  • Rotation: 90° ± 5°

  • Mounting Standard: ISO 5211 / NAMUR Interface

  • Operating Temperature: -20°C to +80°C

  • Optional Control Accessories:

  • Solenoid Valve (24VDC / 230VAC)

  • Limit Switch Box (Mechanical or Proximity type)

  • Air Filter Regulator with Lubricator (FRL Unit)

  • Positioner (for Modulating Type Actuator)

  • Manual Override Option

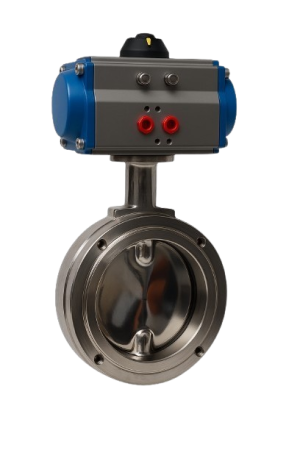

A quarter-turn butterfly valve operated by a pneumatic actuator for precise and reliable flow control. Designed for on/off or modulating service in air, water, chemical, and industrial applications.

Specifications

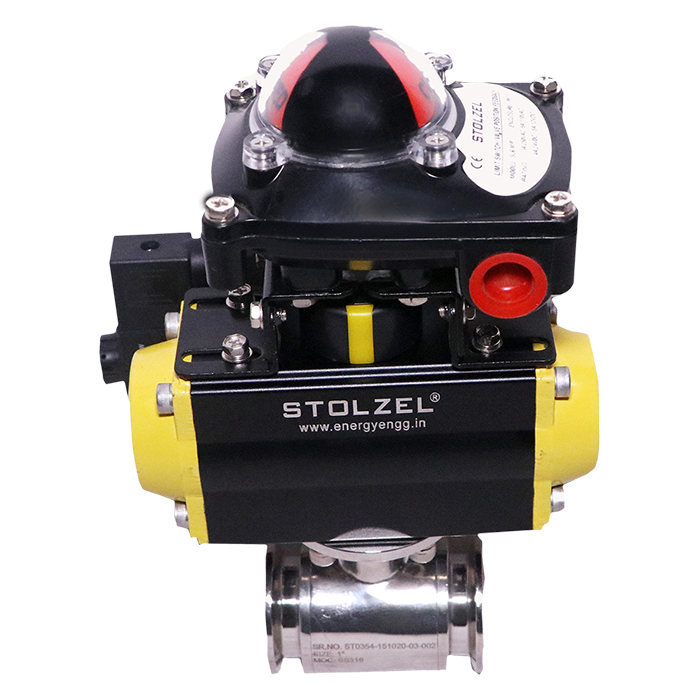

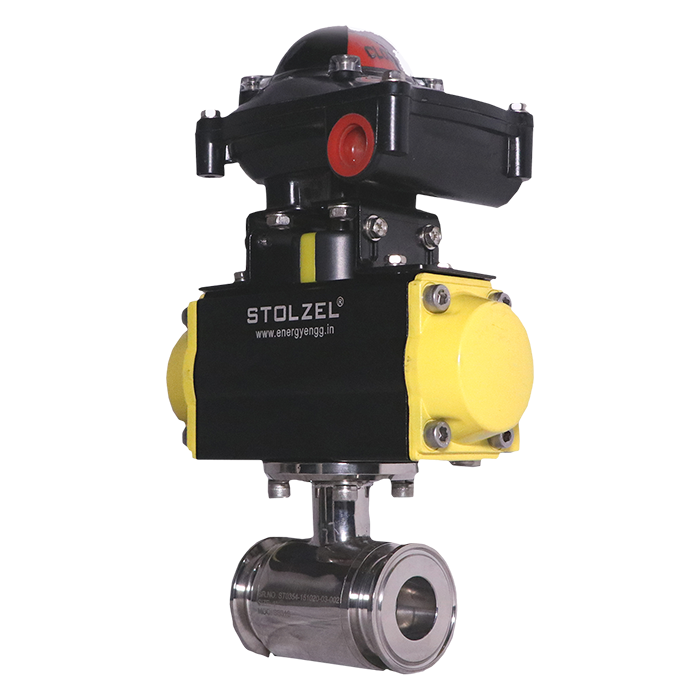

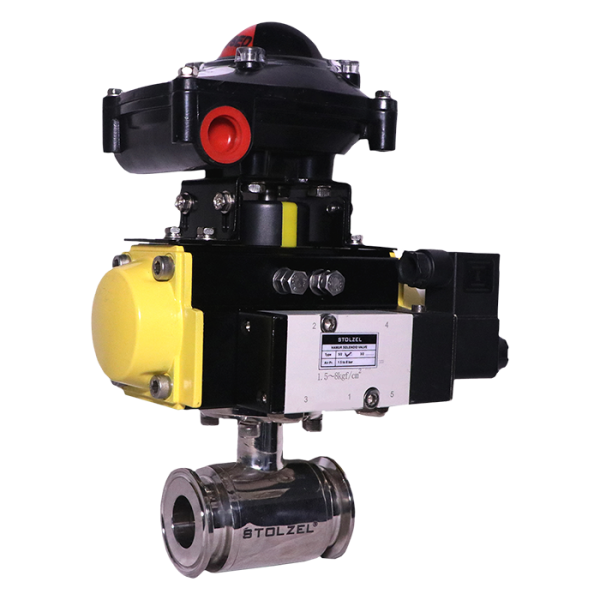

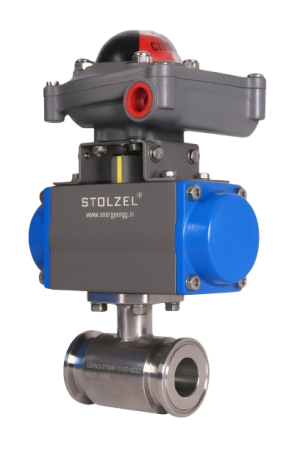

Ball Valve

  • Size : 15NB to 100NB (1/2″ to 4″)

  • Type : 2-Way

  • Body : SS304 / SS316 / SS 316L

  • Ball : SS304 / SS316 / SS 316L

  • Seat : PTFE

  • Pressure Rating : Class 150

  • Temperature : upto 180 Deg C

  • Connection : Tri-Clover End

  • Leakage Class : Class IV / V / VI

Pneumatic Actuator

  • Body : Aluminium alloy

  • Torque : 10Nm to 9000Nm

  • Pneumatic Pressure : 4 – 6 Barg

  • Mounting : ISO5211

  • Position Indicator : Mechanical Position indicator

  • Rotation Angle : 0 to 90° (Rotary Type)

  • Rotation Angle : Mechanical Position indicator

  • Stroke Adjustment : +/- 5% of 90 deg

  • Ambient Temperature : -30° C to +60° C

Accessories

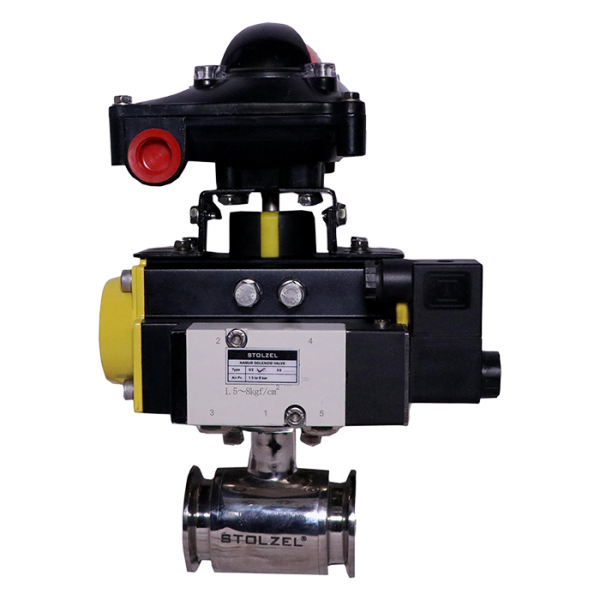

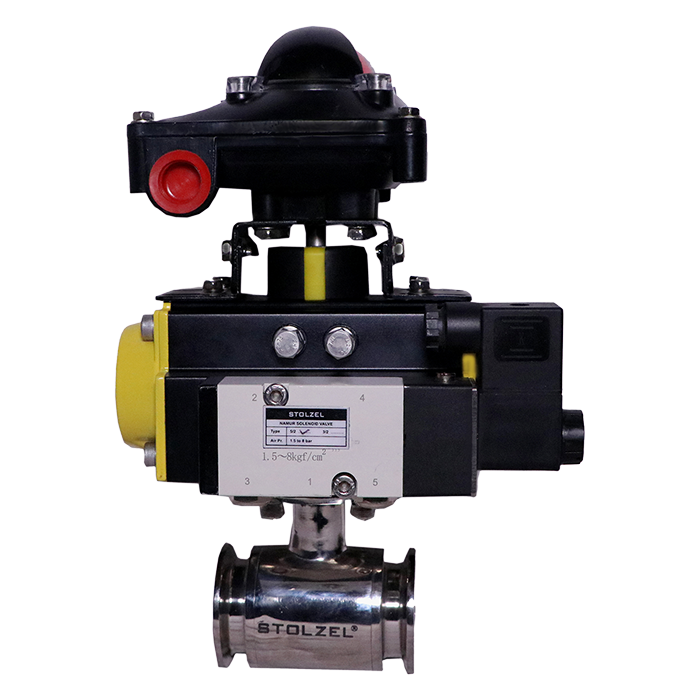

Solenoid Valve – ON/OFF Duty

  • Type : Namur 3/2 & 5/2

  • Coil : 220 VAC / 24 VDC

  • Protection : IP65 / Flame Proof

Positioner – Modulating Duty

  • Type : Electro-Pneumatic / Smart

  • Signal : 4~20 mA / 0-10 VDC

  • Feedback : 4~20 mA / 0-10 VDC (Optional)

Manual Override – Manual Operation along with Automatic

  • Type : Mechanical

  • Lever : Available for De-clutching the Actuator control

Limit Switch – Position Feedback

  • Type : Mechanical / Proximity Switch

  • Signal : Potential Free in case of Mechanical Switch
    24VDC in case of Proximity Switch

  • Enclosure : Aluminum

  • Protection : IP 67
