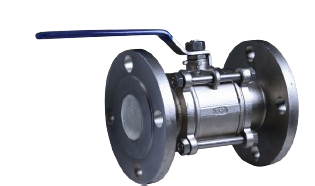

Specifications & Features: Full Port & 3 Pc Body Construction
-
Size Range ½” To 4” (DN 15 TO DN 100)
-
Blow Out Proof Stem
-
Working Pressure – 1000 WOG / PN40
Description
-
Specifications & Features:
-
Full Port & 3 Pc Body Construction
-
Size Range: ½” To 4” (DN 15 to DN 100)
-
Design Standard: BSEN ISO 17292 (BS 5351)
-
Blow Out Proof Stem
-
Handle with Locking Device available on request
-
Flanged End confirming to Class – 150
-
Working Pressure – 1000 WOG / PN40
-
Precision Investment Casted
-
Applications: Food & Pharmaceutical Industries, Compressed Air & Gas Installations, Oil Refineries, Chemical & Solvent Industries, Petrochemical & Process Industries
| S. No | Parts Name | Material |
|---|---|---|
| 1 | Body | Stainless Steel / Carbon Steel |
| 2 | Ball | Stainless Steel |
| 3 | Ball Seat | PTFE |
| 4 | Cap/Nut/Seal | PTFE |
| 5 | Cap/Nut | Stainless Steel / Carbon Steel |
| 6 | Stem / Spindle | Stainless Steel |
| 7 | Thrust Washer / Packing | PTFE |
| 8 | Gland Nut | Stainless Steel |
| 9 | Handle | Stainless Steel / Carbon Steel |
| 10 | Sleeve | PVC |
| 11 | Handle Lock Nut | Stainless Steel |
