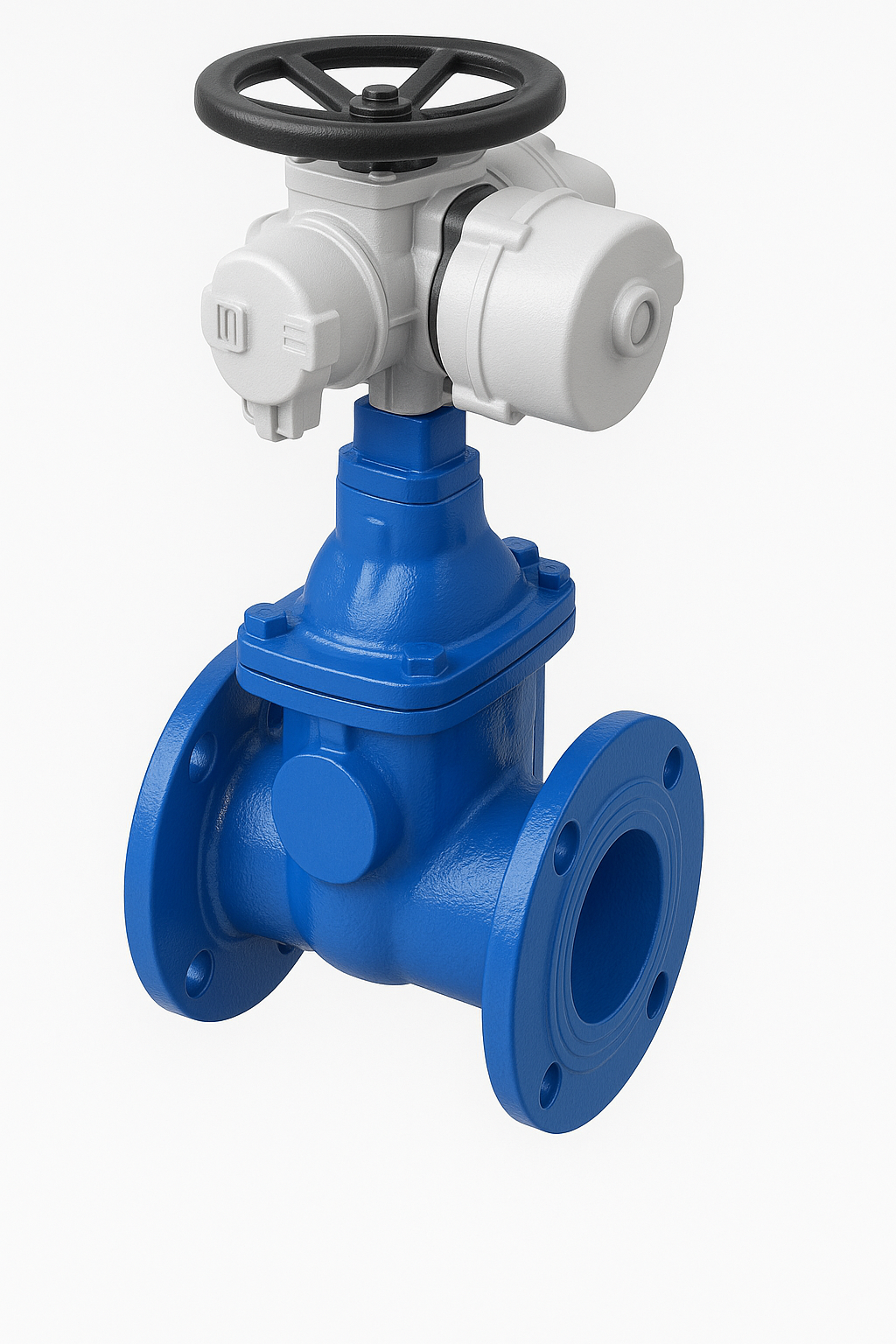

Electrically Actuated Sluice Gate Valve

  • Type : Rising / Non-Rising Spindle, Flanged Ends

  • Size Range : 50 mm to 2000 mm (or as per client requirement)

  • Body Material : Cast Iron / Ductile Iron / Carbon Steel / Stainless Steel

  • Gate Material : Stainless Steel / Bronze / Cast Iron

  • Seat Material : Stainless Steel / Rubber / Bronze / Renewable type

  • Spindle (Stem) : Stainless Steel AISI 410 / 304 / 316

  • Body Pressure Rating : PN10 / PN16 / Class 150 (as applicable)

  • Design Standard : IS:14846 / BS:5163 / AWWA C500 or equivalent

  • End Connection : Flanged as per IS:1538 / ANSI B16.5 / DIN standards

  • Testing Standard : As per IS:14846 / ISO 5208 – Hydrostatic & Seat Test

  • Coating / Painting : Fusion Bonded Epoxy / Polyurethane Paint (min. 150 microns DFT)

Electrical Actuator

  • Actuator Type : Electric Rotary / Multi-turn Actuator

  • Actuator Enclosure : IP67 / IP68 Weatherproof, optionally Explosion Proof

  • Power Supply : 230V AC / 415V AC, 50Hz, 1-Phase or 3-Phase

  • Actuator Torque Range : As per valve size & operating torque requirements

  • Actuator Control : On–Off / Modulating / Remote Control via PLC/SCADA

  • Operating Time : 15–60 seconds (depending on size)

  • Position Indicator : Mechanical & Electrical (Open/Close feedback)

  • Manual Override : Handwheel / Declutch type for emergency operation

  • Limit Switches : Open & Close limit switches (factory set)

  • Protection : Thermal overload protection in actuator motor

  • Ambient Temperature : -10°C to +55°C (standard)

  • Mounting : Direct or through bracket & coupling as per ISO 5210

  • Accessories (Optional) : Torque switches, Local/Remote selector, Position transmitter (4–20 mA), Control unit

  • Applications : Water supply, Sewage treatment, Irrigation, Process industries, etc.

Category:

Description

  • Type Rising / Non-Rising Spindle, Flanged Ends

  • Size Range 50 mm to 2000 mm (or as per client requirement)

  • Body Material Cast Iron / Ductile Iron / Carbon Steel / Stainless Steel

  • Gate Material Stainless Steel / Bronze / Cast Iron

  • Seat Material Stainless Steel / Rubber / Bronze / Renewable type

  • Spindle (Stem) Stainless Steel AISI 410 / 304 / 316

  • Body Pressure Rating PN10 / PN16 / Class 150 (as applicable)

  • Design Standard IS:14846 / BS:5163 / AWWA C500 or equivalent

  • End Connection Flanged as per IS:1538 / ANSI B16.5 / DIN standards

  • Testing Standard As per IS:14846 / ISO 5208 – Hydrostatic & Seat Test

  • Coating / Painting Fusion Bonded Epoxy / Polyurethane Paint (min. 150 microns DFT)

  • Actuator Type Electric Rotary / Multi-turn Actuator

  • Actuator Enclosure IP67 / IP68 Weatherproof, optionally Explosion Proof

  • Power Supply 230V AC / 415V AC, 50Hz, 1-Phase or 3-Phase

  • Actuator Torque Range As per valve size & operating torque requirements

  • Actuator Control On–Off / Modulating / Remote Control via PLC/SCADA

  • Operating Time 15–60 seconds (depending on size)

  • Position Indicator Mechanical & Electrical (Open/Close feedback)

  • Manual Override Handwheel / Declutch type for emergency operation

  • Limit Switches Open & Close limit switches (factory set)

  • Protection Thermal overload protection in actuator motor

  • Ambient Temperature -10°C to +55°C (standard)

  • Mounting Direct or through bracket & coupling as per ISO 5210

  • Accessories (Optional) Torque switches, Local/Remote selector, Position transmitter (4–20 mA), Control unit

  • Applications Water supply, Sewage treatment, Irrigation, Process industries, etc.
