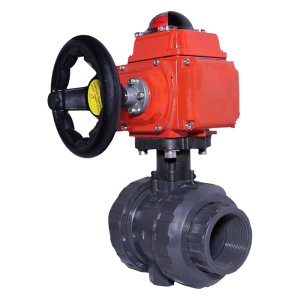

Main Specifications

  • Valve Type: 2-Way Full Bore Ball Valve

  • Operation: Electrically Actuated (On/Off or Modulating Type)

  • Design Standard: ISO 5211 / BS 5351 / API 6D

  • Body Material: CF8 / CF8M / WCB / CS / PP / PVDF / PFA Lined

  • Seat Material: PTFE / RPTFE / CFT / PEEK

  • Size Range: 15 mm to 200 mm (½” to 8”)

  • Pressure Rating: Class 150 / PN16 / PN25

  • Temperature Range: -10°C to +180°C

Download Catalogue

Categories: , , ,

Description

Valve Description

  • Type: 2-Way Full Bore Ball Valve

  • Operation: Electrically Actuated (On/Off or Modulating Type)

  • Design Standard: ISO 5211 / BS 5351 / API 6D

Valve Construction

  • Body: CF8 (SS304) / CF8M (SS316) / WCB / CS / PP / PVDF / PFA Lined

  • Ball: SS304 / SS316 / Chrome Plated SS / PFA Lined

  • Stem / Shaft: SS304 / SS316

  • Seat: PTFE / RPTFE / CFT / PEEK

  • Seals & O-Rings: PTFE / Viton / EPDM

  • Fasteners: SS304 / SS316

Technical Parameters

  • Size Range: 15 mm to 200 mm (½” to 8”)

  • End Connection: Flanged End – ANSI B16.5 / DIN PN10, PN16 / JIS 10K

  • Pressure Rating: Class 150 / PN16 / PN25

  • Temperature Range: -10°C to +180°C (depending on seat & seal material)

  • Operation Type: Quarter Turn (90°)

  • Leakage: Bubble Tight, Class VI

  • Face-to-Face Dimension: As per ASME B16.10

  • Mounting Pad: ISO 5211 Direct Mounting Type

Electric Actuator Specifications

  • Type: Quarter Turn Electric Actuator

  • Power Supply: 230 VAC / 110 VAC / 24 VDC

  • Enclosure Protection: IP67 Weatherproof (Optional: IP68 / Flameproof Exd IIB T4)

  • Duty Cycle: 75% Standard / 100% Optional

  • Operation Time: 15–30 seconds (depends on valve size)

  • Limit Switches: 2 Nos. (Open & Close)

  • Position Indicator: Visual Indicator on Actuator Top

  • Manual Override: Provided (Handwheel)

  • Control Options: On/Off / Modulating (4–20 mA) / Failsafe (spring return or battery backup)

Applications

  • Water & Wastewater Treatment

  • Chemical & Petrochemical Industries

  • Food & Beverage Plants

  • Pharmaceutical Industries

  • HVAC Systems

  • Power & Process Industries

Specifications

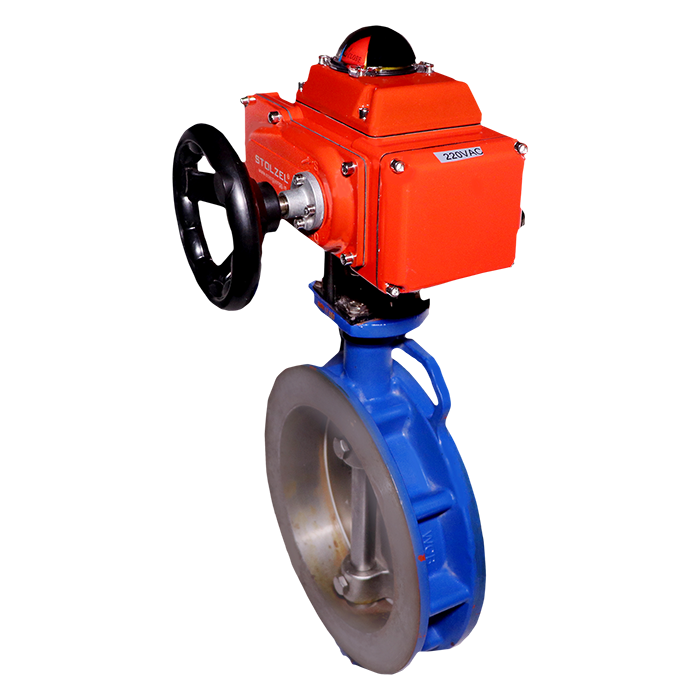

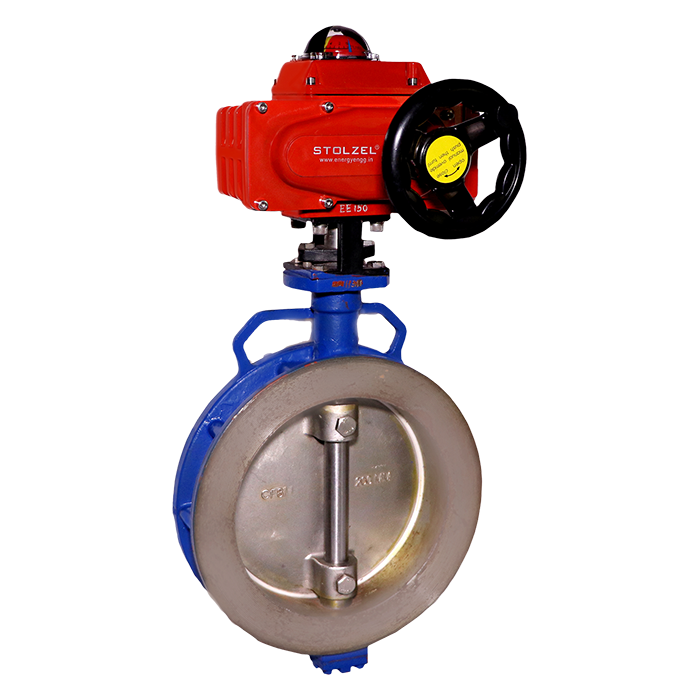

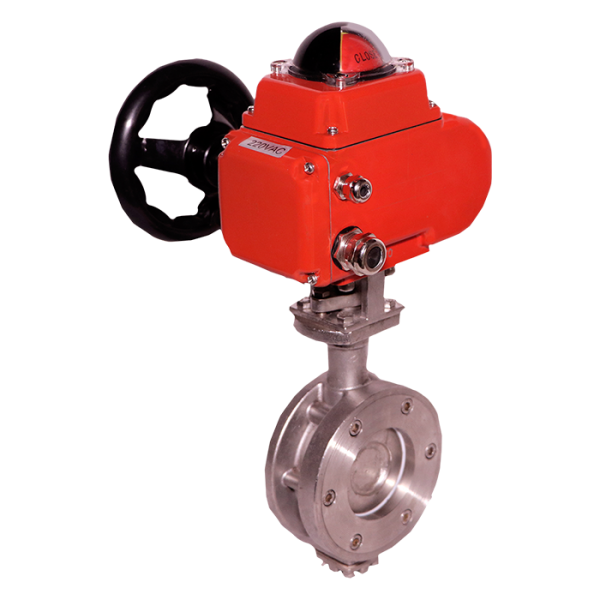

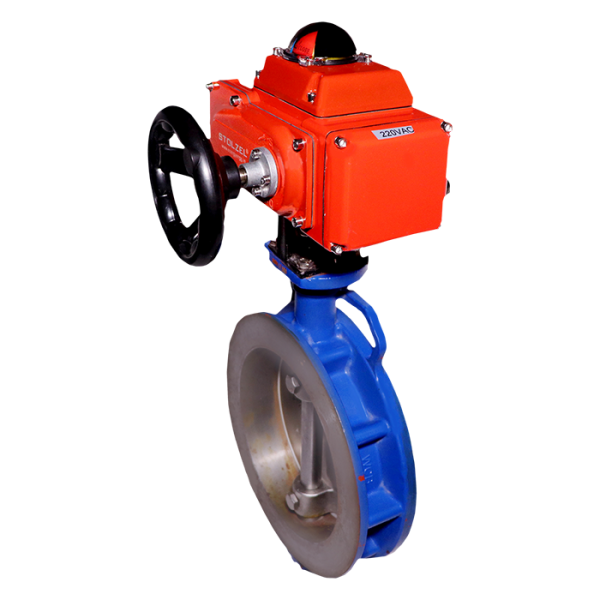

Butterfly Valve

  • Size : 40mm to 600MM (1″ to 24″)

  • Body : CI / CF8 / CF8M

  • Disc : CF8 / CF8M

  • Seat : NBR / EPDM / Viton

  • Pressure : PN10

  • Temperature : NBR – upto 90 Deg C / EPDM – upto 120 Deg C

  • Connection : Wafer type

  • Design Standard : IS-13095

  • Guiding Flange Hole : Follows to BS10 Table-D, BS10 Table-E

Electrical Actuator

  • Enclosure : Aluminium alloy

  • Torque : 30Nm to 50000Nm

  • Electrical Supply : 220 VAC, 24 VDC

  • Control Signal : ON/OFF – 220VAC / 24VDC
    Modulating – 4~20 mA / 0-10 VDC

  • Motor : Squirrel Cage Induction Motor (AC)
    Brushless Motor (DC)

  • Duty Cycle : S2 (15-30 min)

  • Limit Switch : 1 x SPDT (220VAC, 10A) for each Open / Close

  • Manual Override : Wrench Type / Handwheel

  • Space Heater : 7-10W (220VAC) to remove moisture in enclosure

  • Cable Entry : 2 X M18

  • Operating Conditions : -20 to 70 deg C, 80-90% Humidity

  • Mounting : ISO5211

  • Position Indicator : Mechanical Position indicator

  • Rotation Angle : 0 to 90° (Rotary Type)
